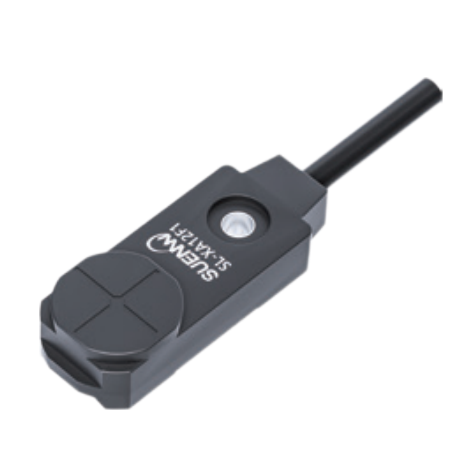

SL-XA12F1-P/SL-XA12F2-P
檢測方式
電感式
連接方式
導線引出型（2m）
檢測距離
4mm
輸出類型
PNP輸出
技術參數 | 檢測型號 | SL-XA12F1-P/SL-XA12F2-P |
| 動作狀態 | NO/NC |
| 最大檢測距離 | 4mm±20% |
| 穩定檢測范圍 | 0-3mm |
| 標準檢測范圍 | 鐵：20×20×1mm |
| 電源電壓 | 12-24V DC±10% |
| 消耗電流 | 10mA max |
| 控制輸出 | |
| 應差距離 | 檢測距離的20%以下 |
| 應差頻率 | 1KHZ |
| 回路保護 | 短路保護 |
| 工作狀態指示燈 | 動作顯示（紅色LED） |
| 環境溫度 | 工作時：-25-70℃、保存時：-30-80℃（不結冰不結露） |
| 環境濕度 | 工作時、保存時：35-95%RH(不結冰) |
| 殘留電壓 | 1V max. (負荷：100mA) 0.4V max. 負荷16mA |
| 絕緣電阻 | 50Ω max. (DC250V)充電部總體與外殼間 |
| 耐電壓 | AC1000V 1min 充電部總體與外殼間 |
| 振動（耐久） | 10~55Hz 復振幅1.5mmX、Y、Z各方向2h |
| 沖擊（耐久） | 1000m/s2X、Y、Z各方向3次 |
| 防護等級 | IEC-IP67 |
| 檢測面材質 | 聚芳脂（PAR） |

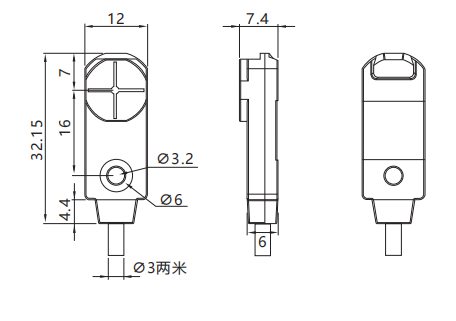

尺寸圖

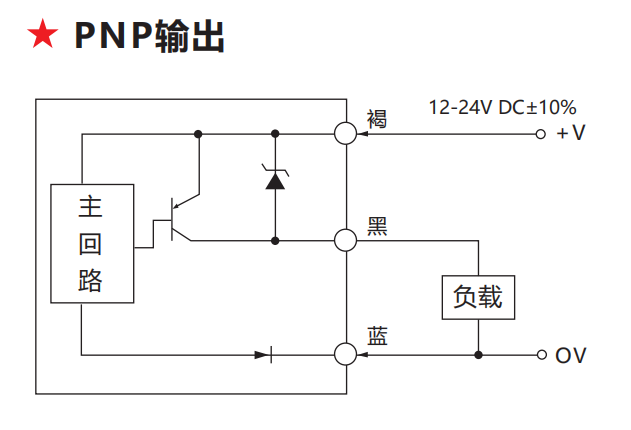

電路圖
