申請?jiān)嚇?
SE-038N1
SL-8F1/SL-8F2
SL-12F1/SL-12F2
SL-X12F1/SL-X12F2
SL-8H1/SL-8H2
SL-XA12F1/SL-XA12F2
SL-8F1-P/SL-8F2-P
SL-8H1-P/SL-8H2-P
SL-12F1-P/SL-12F2-P
SL-X12F1-P/SL-X12F2-P
SL-XA12F1-P/SL-XA12F2-P
SL-J1R5MN1/SL-J1R5MN2
SL-J3MN1/SL-J3MN2
SL-J5MN1/SL-J5MN2
SL-J15N1/SL-J15N2
SL-J1R5MP1/SL-J1R5MP2
SL-J3MP1/SL-J3MP2
SL-J5MP1/SL-J5MP2
SL-J15P1/SL-J15P2
SL-H5MN1/SL-H5MN2
SL-Q8DN1/SL-Q8DN2
SL-18HN1/SL-18HN2
SL-F10MN1/SL-F10MN2
SL-F20MN1/SL-F20MN2
SL-H5MP1/SL-H5MP2
SL-Q8DP1/SL-Q8DP2
SL-18HP1/SL-18HP2
SL-F10MP1/SL-F10MP2
SL-F20MP1/SL-F20MP2
SE-030N1
SE-038N1
SE-C05N1
SE-054N1
SE-080N1
SE-C10N1
SE-C14N1
SE-030P1
SE-038P1
SE-C05P1
SE-054P1
SE-080P1
SE-C10P1
SE-C14P1
SE-CM3TN1/SE-CM3TN2
SE-CM4TN1/SE-CM4TN2
SE-M5TN1/SE-M5TN2
SE-CM5TN1/SE-CM5TN2
SE-CM3TP1/SE-CM3TP2
SE-CM4TP1/SE-CM4TP2
SE-M5TP1/SE-M5TP2
SE-CM5TP1/SE-CM5TP2
SE-M8TN1/SE-M8TN2
SE-M8N1/SE-M8N2
SE-M12TN1/SE-M12TN2
SE-M12N1/SE-M12N2
SE-M8TP1/SE-M8TP2
SE-M8P1/SE-M8P2
SE-M12TP1/SE-M12TP2
SE-M12P1/SE-M12P2
SE-M18TN1/SE-M18TN2
SE-M18N1/SE-M18N2
SE-M30TN1/SE-M30TN2
SE-M30N1/SE-M30N2
SE-M18TP1/SE-M18TP2
SE-M18P1/SE-M18P2
SE-M30TP1/SE-M30TP2
SE-M30P1/SE-M30P2
SE2-D3AN006T-2M/SE2-D3BN006T-2M
SE2-D3AN008T-2M/SE2-D3BN008T-2M
SE2-D3AN0010T-2M/SE2-D3BN010T-2M
SE2-D3AP006T-2M/SE2-D3BP006T-2M
SE2-D3AP008T-2M/SE2-D3BP008T-2M
SE2-D3AP010T-2M/SE2-D3BP010T-2M
SE2-D4AN008T-2M/SE2-D4BN008T-2M
SE2-D4AN010T-2M/SE2-D4BN010T-2M
SE2-D4AN012T-2M/SE2-D4BN012T-2M
SE2-D4AN015T-2M/SE2-D4BN015T-2M
SE2-D4AP008T-2M/SE2-D4BP008T-2M
SE2-D4AP010T-2M/SE2-D4BP010T-2M
SE2-D4AP012T-2M/SE2-D4BP012T-2M
SE2-D4AP015T-2M/SE2-D4BP015T-2M
SE2-M5AN008T-2M/SE2-M5BN008T-2M
SE2-M5AN010T-2M/SE2-M5BN010T-2M
SE2-M5AN012T-2M/SE2-M5BN012T-2M
SE2-M5AN015T-2M/SE2-M5BN015T-2M
SE2-M5AP008T-2M/SE2-M5BP008T-2M
SE2-M5AP010T-2M/SE2-M5BP010T-2M
SE2-M5AP012T-2M/SE2-M5BP012T-2M
SE2-M5AP015T-2M/SE2-M5BP015T-2M
SE2-M6AN008T-2M/SE2-M6BN008T-2M
SE2-M6AN010T-2M/SE2-M6BN010T-2M
SE2-M6AN012T-2M/SE2-M6BN012T-2M
SE2-M6AN015T-2M/SE2-M6BN015T-2M
SE2-M6AP008T-2M/SE2-M6BP008T-2M
SE2-M6AP010T-2M/SE2-M6BP010T-2M
SE2-M6AP012T-2M/SE2-M6BP012T-2M
SE2-M6AP015T-2M/SE2-M6BP015T-2M
SE2-M8AN02T-2M/SE2-M8BN02T-2M
SE2-M8AN03T-2M/SE2-M8BN03T-2M
SE2-M8AN04T-2M/SE2-M8BN04T-2M
SE2-M8AN06T-2M/SE2-M8BN06T-2M
SE2-M8AP02T-2M/SE2-M8BP02T-2M
SE2-M8AP03T-2M/SE2-M8BP03T-2M
SE2-M8AP04T-2M/SE2-M8BP04T-2M
SE2-M8AP06T-2M/SE2-M8BP06T-2M
SE2-M12AN04T-2M/SE2-M12BN04T-2M
SE2-M12AN06T-2M/SE2-M12BN06T-2M
SE2-M12AN08T-2M/SE2-M12BN08T-2M
SE2-M12AN10T-2M/SE2-M12BN10T-2M
SE2-M12AP04T-2M/SE2-M12BP04T-2M
SE2-M12AP06T-2M/SE2-M12BP06T-2M
SE2-M12AP10T-2M/SE2-M12BP10T-2M
SE2-M12AP08T-2M/SE2-M12BP08T-2M
SE2-M18AN08T-2M/SE2-M18BN08T-2M
SE2-M18AN12T-2M/SE2-M18BN12T-2M
SE2-M18AN16T-2M/SE2-M18BN16T-2M
SE2-M18AN20T-2M/SE2-M18BN20T-2M
SE2-M18AP08T-2M/SE2-M18BP08T-2M
SE2-M18PN12T-2M/SE2-M18BP12T-2M
SE2-M18AP16T-2M/SE2-M18BP16T-2M
SE2-M18AP20T-2M/SE2-M18BP20T-2M
SE2-M30AN15T-2M/SE2-M30BN15T-2M
SE2-M30AN22T-2M/SE2-M30BN22T-2M
SE2-M30AN25T-2M/SE2-M30BN25T-2M
SE2-M30AN40T-2M/SE2-M30BN40T-2M
SE2-M30AP15T-2M/SE2-M30BP15T-2M
SE2-M30AP22T-2M/SE2-M30BP22T-2M
SE2-M30AP25T-2M/SE2-M30BP25T-2M
SE2-M30AP40T-2M/SE2-M30BP40T-2M
SEG-M8AN01T-2M/SEG-M8BN01T-2M
SEG-M8AN02-2M/SEG-M8BN02-2M
SEG-M8AP01T-2M/SEG-M8BP01T-2M
SEG-M8AP02-2M/SEG-M8BP02-2M
SEG-M12AN02T-2M/SEG-M12BN02T-2M
SEG-M12AN04-2M/SEG-M12BN04-2M
SEG-M12AP02T-2M/SEG-M12BP02T-2M
SEG-M12AP04-2M/SEG-M12BP04-2M
SEG-M18AN05T-2M/SEG-M18BN05T-2M
SEG-M18AN08-2M/SEG-M18BN08-2M
SEG-M18AP05T-2M/SEG-M18BP05T-2M
SEG-M18AP08-2M/SEG-M18BP08-2M
SEG-M30AN10T-2M/SEG-M30BN10T-2M
SEG-M30AN15-2M/SEG-M30BN15-2M
SEG-M30AP10T-2M/SEG-M30BP10T-2M
SEG-M30AP15-2M/SEG-M30BP15-2M
SEF-M8AN01T-2M/SEF-M8BN01T-2M
SEF-M8AN02-2M/SEF-M8BN02-2M
SEF-M8AP01T-2M/SEF-M8BP01T-2M
SEF-M8AP02-2M/SEF-M8BP02-2M
SEF-M12AN02T-2M/SEF-M12BN02T-2M
SEF-M12AN04-2M/SEF-M12BN04-2M
SEF-M12AP02T-2M/SEF-M12BP02T-2M
SEF-M12AP04-2M/SEF-M12BP04-2M
SEF-M18AN05T-2M/SEF-M18BN05T-2M
SEF-M18AN08-2M/SEF-M18BN08-2M
SEF-M18AP05T-2M/SEF-M18BP05T-2M
SEF-M18AP08-2M/SEF-M18BP08-2M
SEF-M30AN10T-2M/SEF-M30BN10T-2M
SEF-M30AN15-2M/SEF-M30BN15-2M
SEF-M30AP10T-2M/SEF-M30BP10T-2M
SEF-M30AP15-2M/SEF-M30BP15-2M
SE2-M8DAN01T-2M/SE2-M8DBN01T-2M
SE2-M8DAN02-2M/SE2-M8DBN06-2M
SE2-M12DAN02T-2M/SE2-M12DBP02T-2M
SE2-M12DAN04-2M/SE2-M12DBP04-2M
SE2-M18DAN05T-2M/SE2-M18DBP05T-2M
SE2-M18DAN08-2M/SE2-M18DBP08-2M
SE2-M30DAN10T-2M/SE2-M30DBN10T-2M
SE2-M30DAN15-2M/SE2-M30DBN15-2M
檢測方式
電感式
連接方式
埋入式
檢測距離
0 .8mm
輸出類型
NPN輸出
技術參數 | 檢測型號 | SE-038N1 |
| 尺寸 | ?3.8 |
| 檢測距離 | 0 .8mm±15% |
| 可檢測物體 | |
| 標準目標物(鐵：t=1mm) | 5x5mm |
| 應差距離 | 最大為檢測距離的10% |
| 應差頻率 | 1.2kHz |
| 溫度波動 | 在+23℃(73.4°F)時最大為檢測距離的±10%，在到+70(14-158°F)以?xún)?nèi) |
| 指示燈 | 輸出(紅色LED) |
| 控制輸出 | 最大100mA(40V)，剩余電壓：最大1V |
| 電源 | 10.8至30V DC |
| 消耗電流 | 最大12mA |
| 防護等級 | IP-67 |
| 周?chē)鷾囟?/td> | -25-+80°F(-13-+176°F)(無凍結) |
| 周?chē)鷿穸?/td> | 35-95%,無凝結 |

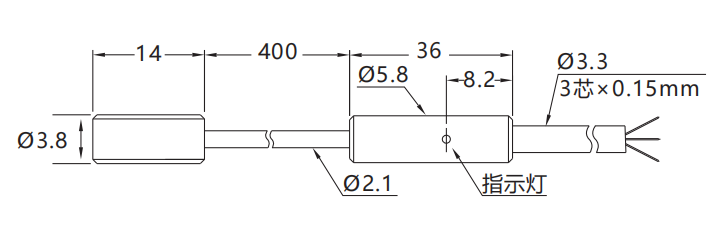

尺寸圖
電路圖
