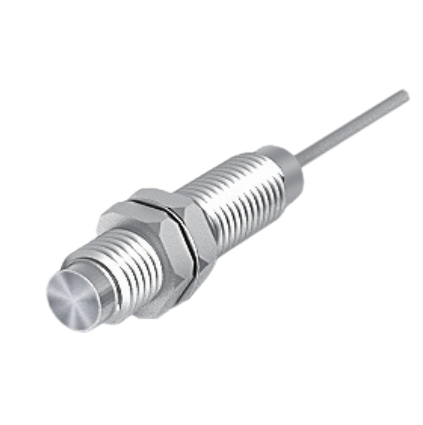

SEF-M12AP04-2M/SEF-M12BP04-2M
檢測方式
電感式
連接方式
導線引出型（2m）
檢測距離
4mm
輸出類型
PNP輸出
技術參數 | 檢測型號 | SEF-M12AP04T-2M/SEF-M12BP04T-2M |
| 動作狀態 | NO/NC |
| 尺寸 | M12 |
| 屏蔽/非屏蔽 | 非屏蔽 |
| 最大檢測距離 | 4mm±10% |
| 重復精度 | <1.0%(Sr) |
| 響應時間 | 0 .2ms |
| 標準檢測物體 | 磁性金屬（非磁性金屬檢測距離減?。?/td> |
| 工作電壓 | 10-30V DC |
| 消耗電流 | 10mA max |
| 開關容量 | 200mA max |
| 應差頻率 | 1kHz |
| 回路保護 | 逆向連接、浪涌吸收、負載短路保護 |
| 工作狀態指示燈 | 動作顯示(紅色LED) |
| 周圍溫度 | -25℃-+70℃ |
| 周圍濕度 | 工作時，保存時：35-95%RH |
| 殘留電壓 | 負荷：220mA |
| 絕緣電阻 | 50M Ωmax.(DC500V)充電部總體與外殼間 |
| 耐電壓 | AC 1000V 50/60Hz 1min.充電部總體與外殼間 |
| 保護構造 | IEC 規格IP67 |

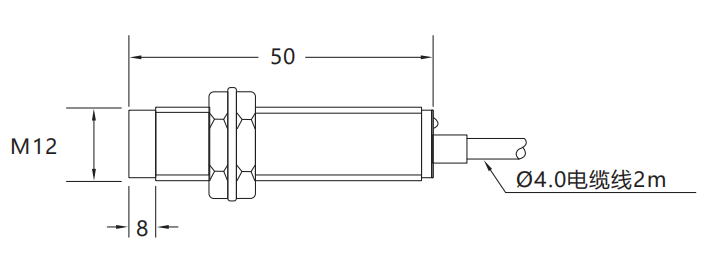

尺寸圖

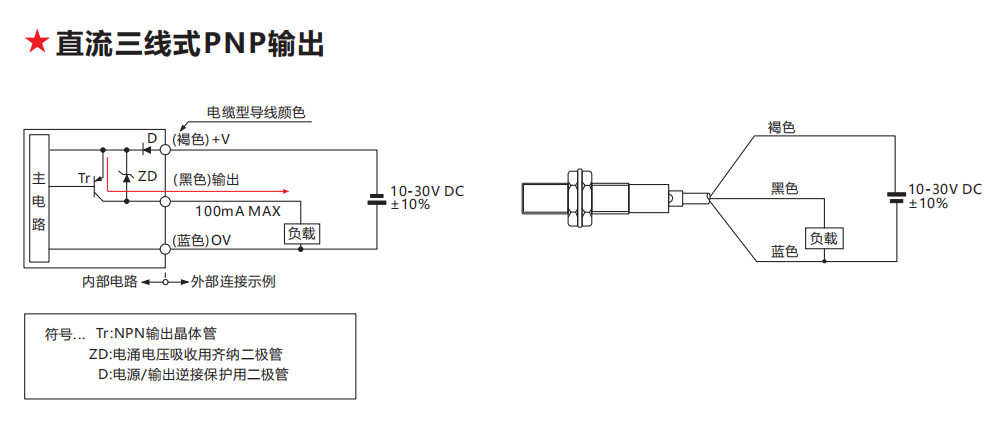

電路圖
