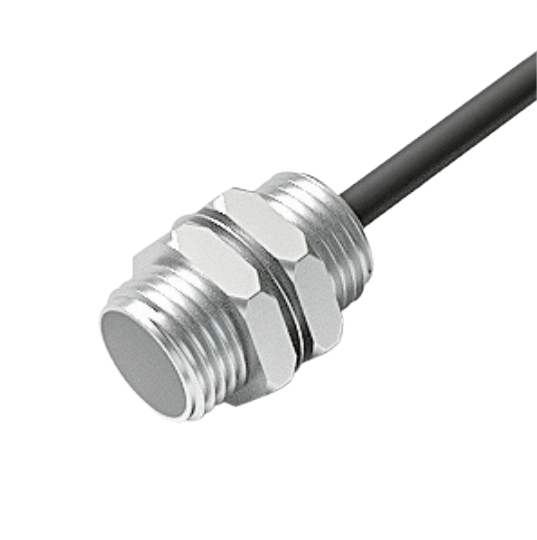

SE-C14N1
檢測方式
電感式
連接方式
埋入式
檢測距離
4mm
輸出類型
NPN輸出
技術參數 | 檢測型號 | SE-C14N1 |
| 尺寸 | M14 |
| 檢測距離 | 4 .0mm±10% |
| 可檢測物體 | |
| 標準目標物(鐵：t=1mm) | 15x15mm |
| 應差距離 | 最大為檢測距離的10% |
| 應差頻率 | 1.2kHz |
| 溫度波動 | 在+23℃(73.4°F)時最大為檢測距離的±10%，在到+70(14-158°F)以內 |
| 指示燈 | 輸出(紅色LED) |
| 控制輸出 | 最大100mA(40V)，剩余電壓：最大1V |
| 電源 | 10 .8至30V DC |
| 消耗電流 | 最大12mA |
| 防護等級 | IP-67 |
| 周圍溫度 | -25-+80°F(-13-+176°F)(無凍結) |
| 周圍濕度 | 35-95%,無凝結 |

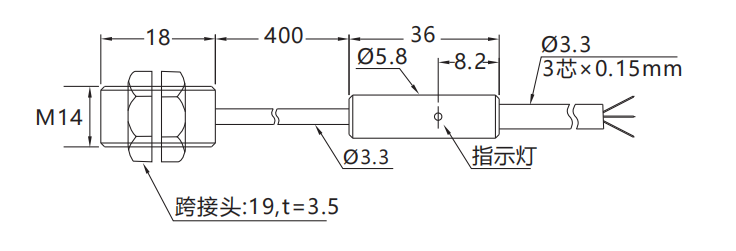

尺寸圖
電路圖
